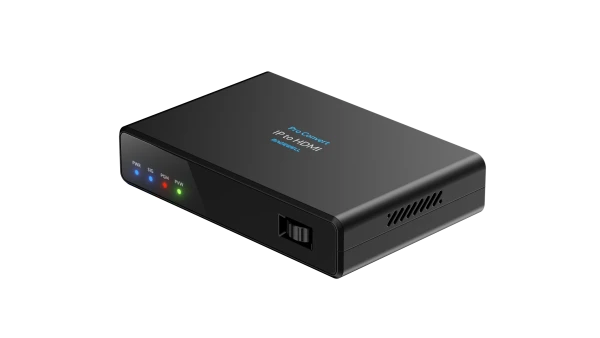

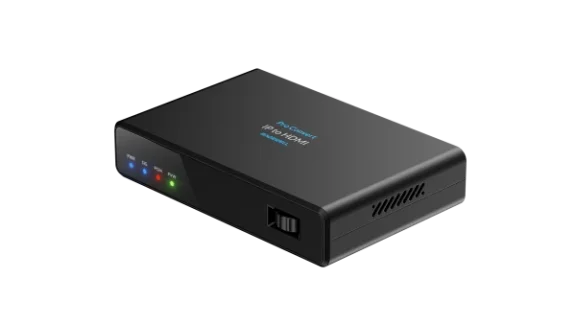

Pro Convert IP to HDMI

• Support multiple output modes for decoding of different protocol signals.
  • Single Screen
    • Number of decoding channels: 1
    • Supported Protocols: NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
    • Formats: H.264, H.265, SpeedHQ, MPEG2
    • Resolution: Up to 2560x1440p60
  • Picture-in-Picture
    • Number of decoding channels: 2
    • Supported Protocols: NDI High Bandwidth^*, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
    • Formats: H.264, H.265, SpeedHQ, MPEG2^*
    • Resolution: Up to 1920x1080p60

    ^*Note: Only one channel of either NDI High Bandwidth or MPEG2 format video is supported for decoding.

  • Quad Screen
    • Number of decoding channels: 4
    • Supported Protocols: NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT, RTMP, RTSP, HTTP, HLS and ZIXI
    • Formats: H.264, H.265
    • Resolution: Up to 1920x1080p60

• Support decoding of audio formats including AAC, MP3, AC3, Opus and G.711

• Support NDI 6.3

• Max output: 2560x1440 60fps 4:4:4 10-bit
• Commonly supported output formats include:
  • 2560x1440p60
  • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1920x1080i 50/59.94/60
  • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
  • 720x576p50
  • 720x576i50
  • 720x480p59.94/60
  • 720x480i59.94/60
• Support color space: BT.601/BT.709/BT.2020
• Support HDR PQ/HLG
• Support 48/96KHz 8-channel audio output
• HDMI interface: HDMI 2.0

• Support registration with Control Hub and Zixi ZEN Master for remote centralized management
• Provide WebUI tools
• Provide comprehensive information regarding the device and decoded signals in real-time
• Support preview of output images and PTZ control
• Configure audio and video signal decoding and output parameters, including OSD, deinterlacing, video format, audio gain, sample rate, Ping test, security settings, configuration files import and export, and network connections
• Support firmware upgrade
• Support USB NET
• Support Edge/Firefox/Chrome/Safari/Opera web browsers
• Support HTTP APIs

• Rotary encoder button:
  • Rotate: toggle options
  • Press: bring up menu, enter current option, or confirm the selection

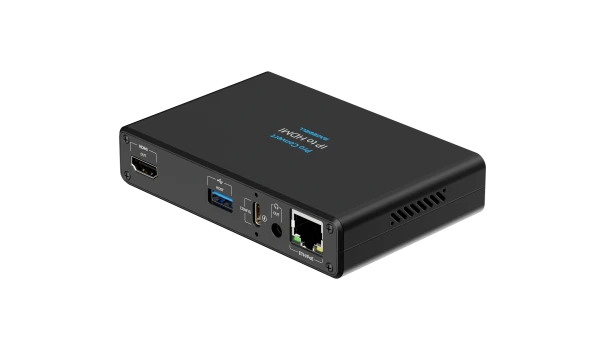

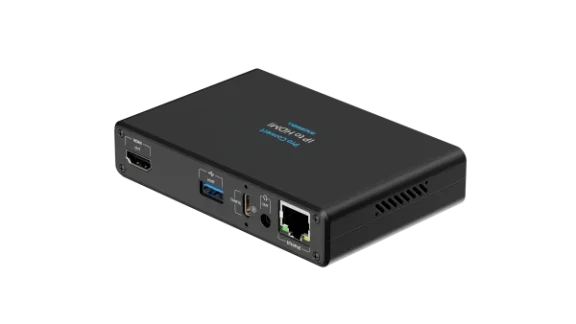

• 10/100/1000Mbps Ethernet
• Support IEEE 802.3af PoE and 802.3at PoE+

• USB3.0 Type C
  • 5V/12V 10W power supply
  • USB NET
• USB3.0 Type A
  • Connecting peripherals (keyboard and/or mouse) to customize device settings

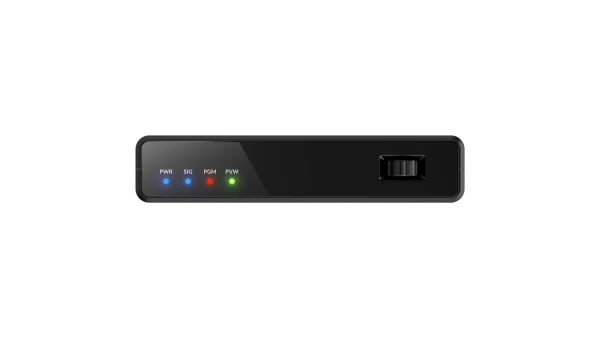

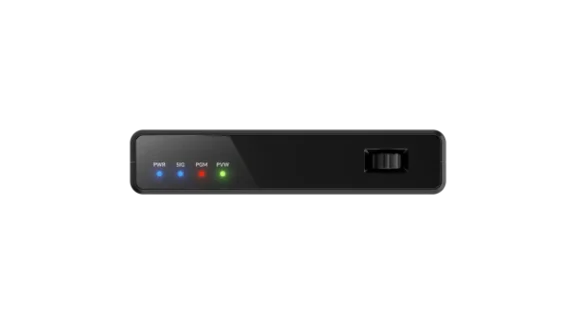

• Power Indicator (PWR)
  • On: Power connected
  • Off: Power disconnected
• Decoding status Indicator (SIG)
  • Blue: All selected sources in single/multi-channel decoding are working normally
  • Red: All selected sources in single/multi-channel decoding are abnormal
  • Green: Both normal and abnormal decoding exist simultaneously in multi-channel decoding
  • Off: No sources selected in single/multi-channel decoding
• Tally lights
  • Program Tally (PGM): The connected NDI source is live when illuminating red
  • Preview Tally (PVW): The connected NDI source is in preview when illuminating green

• 4.72″ (L) x 3.12″ (W) x 0.96″ (H) (as is 120 mm (L) x 79.3 mm (W) x 24.5 mm (H))

• ¼–20 threaded hole

• 5V maximum current: ~1.324A
• 12V maximum current: ~0.555A
• Max power consumption: ~6.62W

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing
